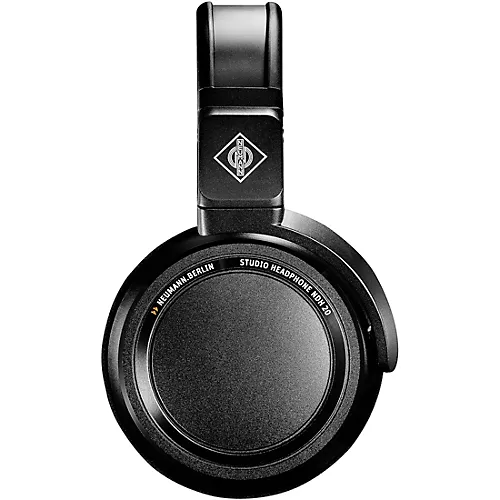

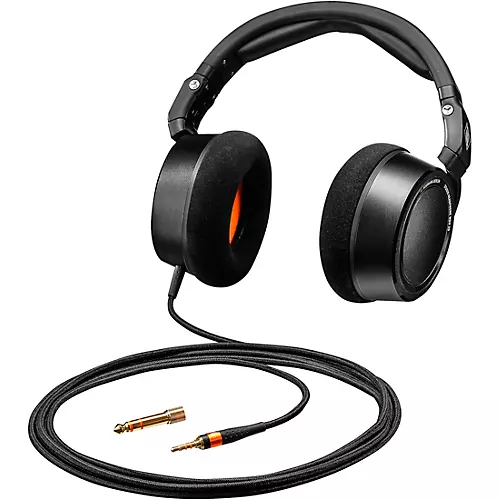

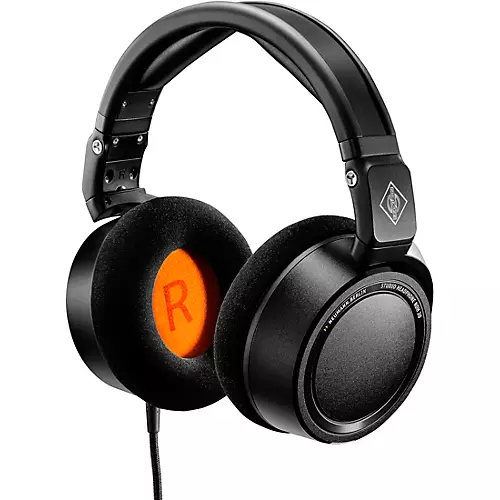

Neumann NDH 20 Closed-Back Studio Monitoring Headphones

NDH 20 Closed-Back Studio Monitoring Headphones Specifications:

  • Wearing style: Headband

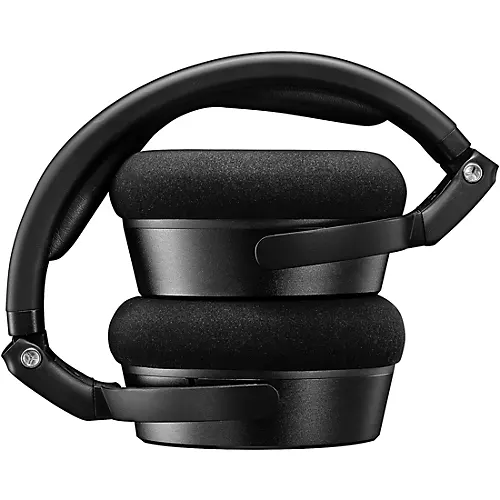

  • Foldable: Yes
  • Ear coupling: Circumaural
  • Acoustic principle: Dynamic Closed
  • Transducer diameter: 38 mm (1-1/2″)
  • Transducer magnet: Neodymium
  • Diaphragm material: Duofol
  • Transducer protection: Cloth-covered grille
  • Nominal impedance: 150 ohms
  • Frequency response: 5–30,000Hz
  • Sensitivity at 1kHz/1 Vrms 114dB SPL (1kHz, 1 Vrms)
  • Max input power handling: 1,000 mW
  • Continuous input power handling: 200 mW
  • THD at 1kHz and 100dB SPL: <0.10%
  • Sound isolation: >34dB (>4kHz)
  • Cable entry: Single sided, right ear cup
  • Connectivity: 3.5 mm (1/8″) TRS jack plug (straight), adapter for 6.3 mm (1/4″)
  • Cable length: Spiraled 1.5–3 m (5’–10′), Straight 3 m (10′)
  • Cable weight: Spiraled 100 g (3.5 oz.), Straight 60 g (2.1 oz.)
  • Ear cup contact pressure: 5.56.8 N
  • Weight excluding cable: 390 g (13-3/4 oz.)
  • Detachable cable: Yes
  • Replaceable earpads: Yes
  • Operating conditions: +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
  • Transport/storage conditions: –25° C to +70° C (–13° F to 158° F); <90% RH; non-condensing
  • Packed dimensions (HxWxD): 245 x 255 x 85 mm (9-5/8″ x 10″ x 3-3/8″)
  • Packed weight: 1.22 kg (2 lb. 11 oz.)
  • Packed cube: 0.005 m³
