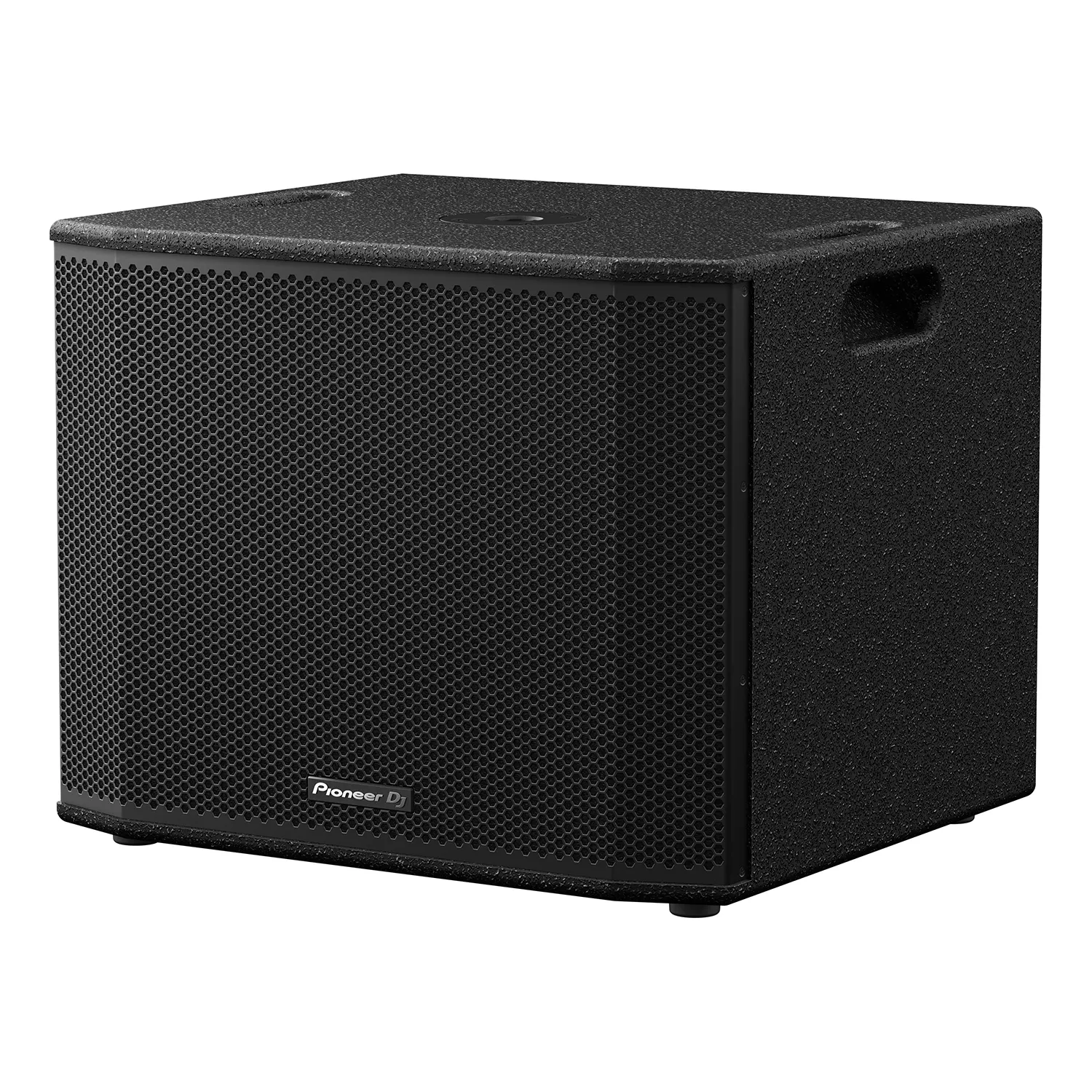

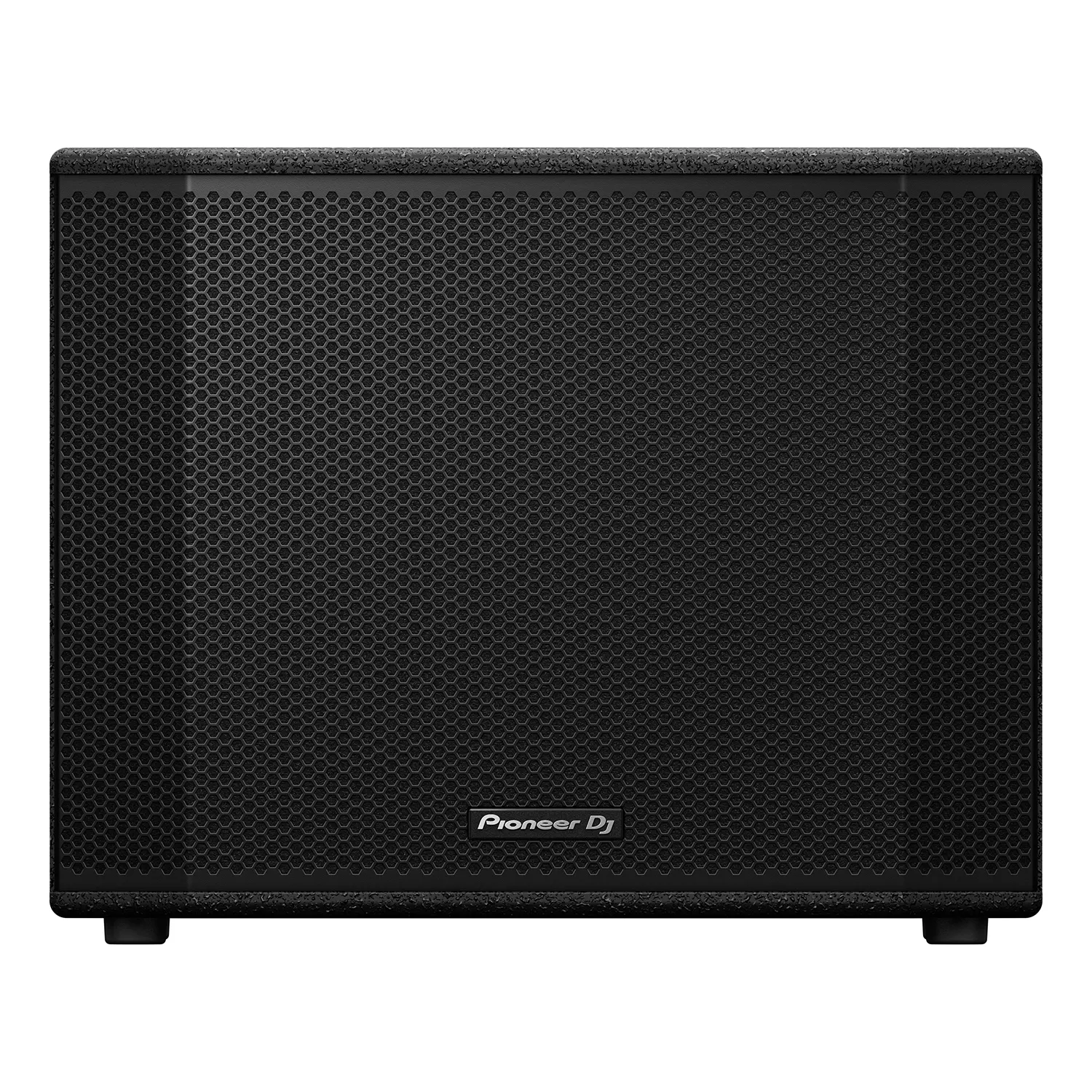

Pioneer XPRS1152S 15-Inch Active Subwoofer

Frequency Response

As with the XPRS2 full range speakers, the new XPRS2 subwoofers’ performance is apparent through both the frequency response and maximum SPL. With the XPRS1152S providing a frequency response of 45 Hz – 120 Hz and a maximum SPL of 129 dB, while the XPRS1182S offers a 40 Hz – 120 Hz frequency response and 130 dB maximum SPL; the subwoofers pack in the performance of a permanent install subwoofer with the compact mobility required by today’s mobile artists, performers and venues.

  • System Type: 15” active vented subwoofer
  • Power Rating: Class D 4000 W (Peak)
  • Transducer Low: 15” ferrite woofer, 3” (76 mm) voice coil with long excursion
  • Frequency Response (-6 dB): 45 Hz – 120 Hz
  • Max SPL: 129 dB
  • DSP Presets Modes: BOOST / EXTENDED LF / NORMAL
  • Crossover Frequency: 80 Hz / 100 Hz / 120 Hz Low Pass Filter
  • Electronic Protections: Over Heat Protection / Short Circuit Protection / Digital Compressor
  • Cooling: Temperature-Controlled fan

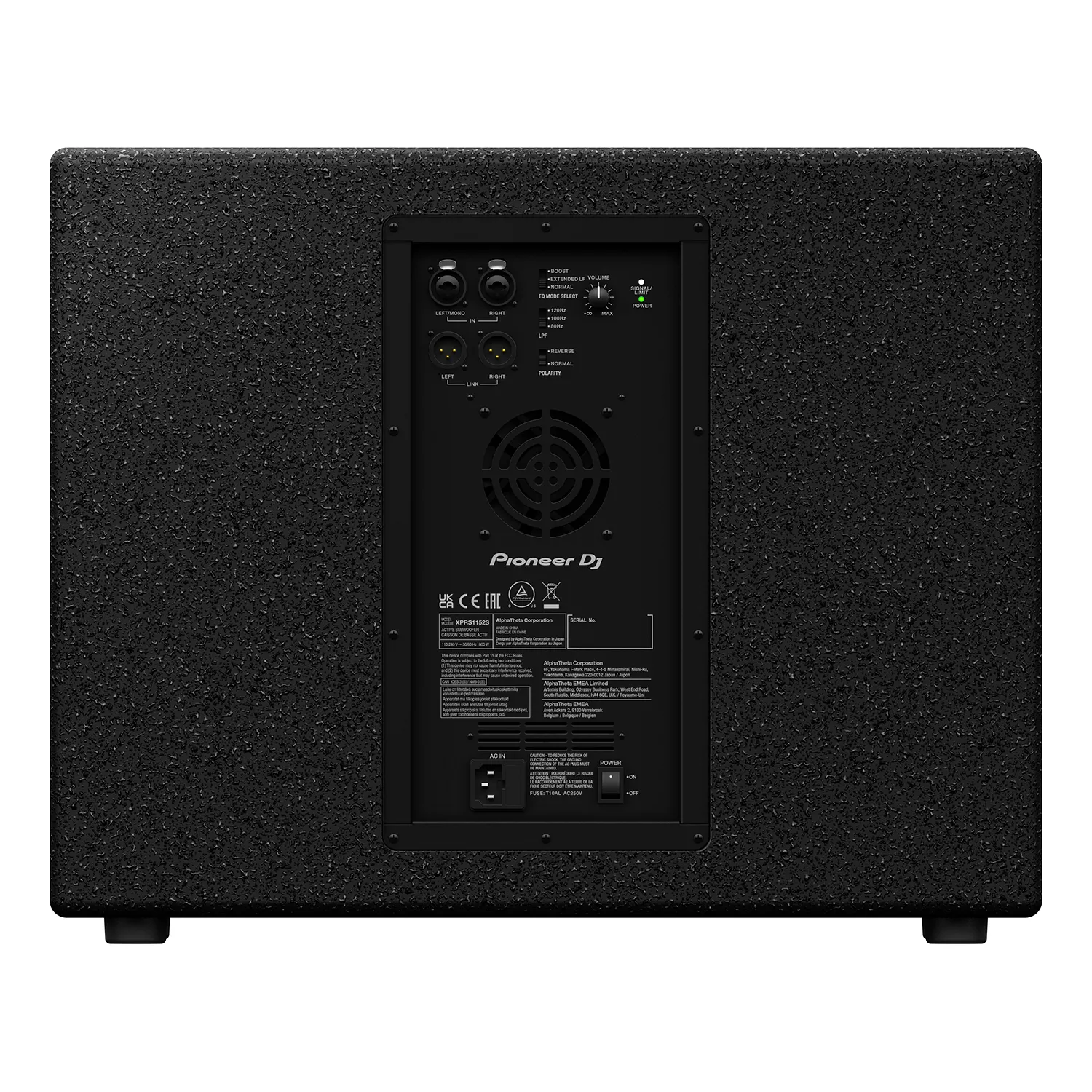

  • Connectors: Input: Left Mono (Combo) / Right (Combo), Output: Left Mono (XLR) / Right (XLR)
  • External Controls: Volume Control / Phase Switch / Switch for EQ Mode Selector / Switch for LPF / Power On With Green LED / Limiter With Red LED
  • Power Supply: 100 V – 240 V (50 Hz / 60 Hz)
  • Power Supply Consumption: 800 W

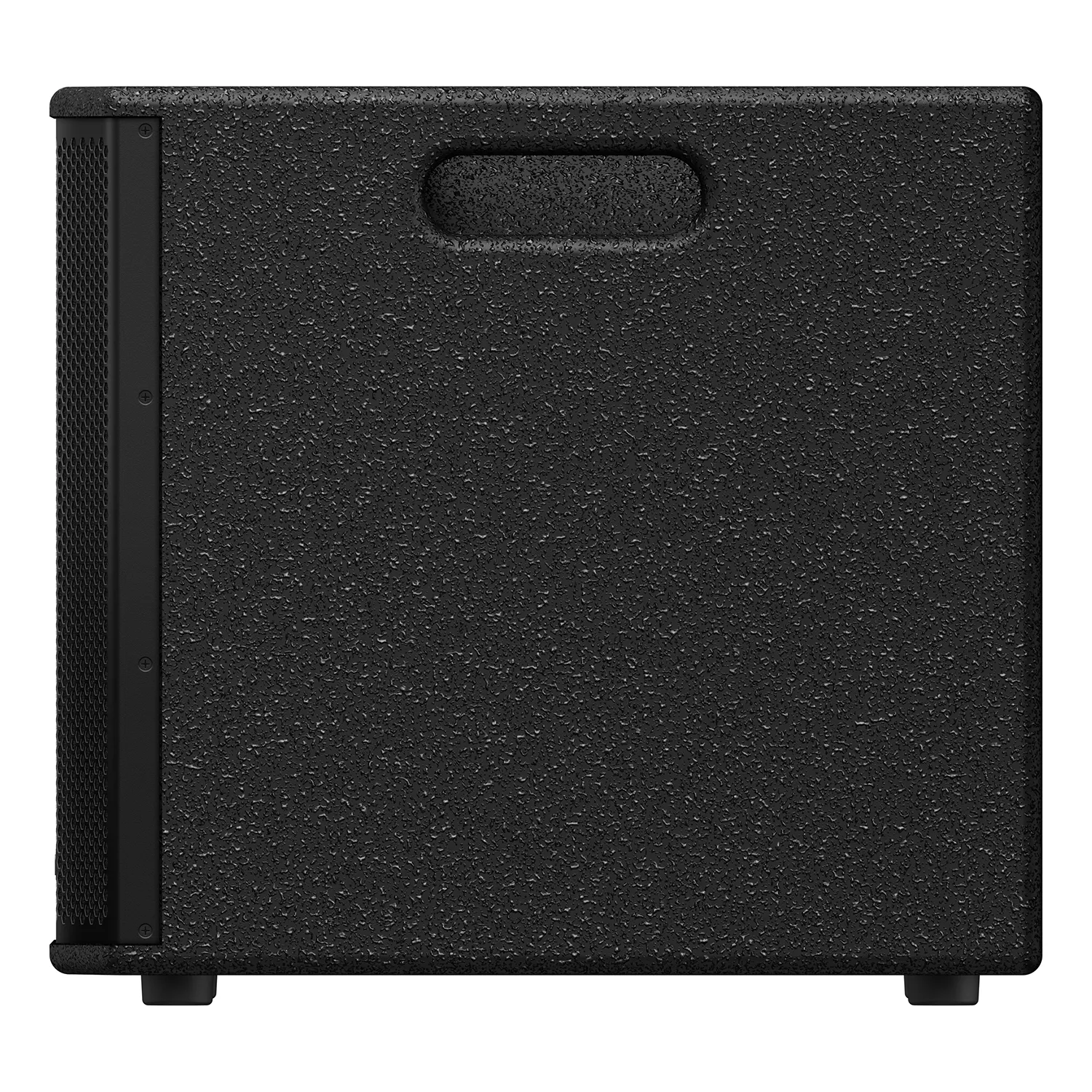

  • Enclosure Construction: Plywood cabinet, black paint, metal grille with foam, rubber feet, double handles
  • Mounting: One standard metal pole-mount.
  • Dimensions (W x H x D): 22.83” (580 mm) x 17.72” (450 mm) x 19.80” (503 mm)
  • Net Weight: 26.3 kg (57.9 Ib)
